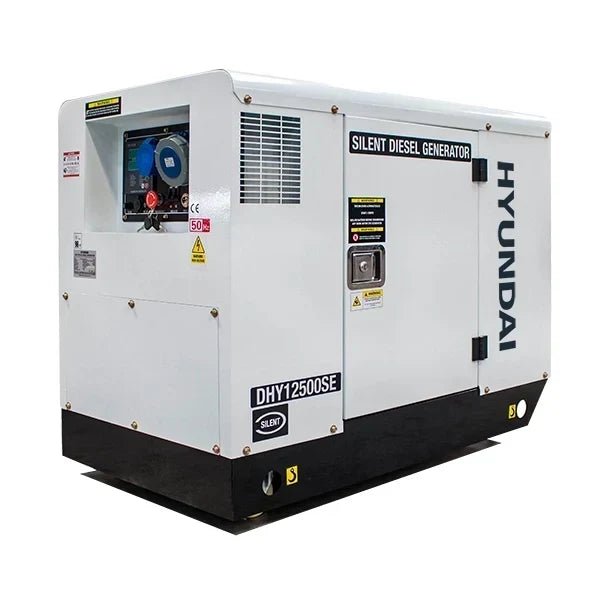

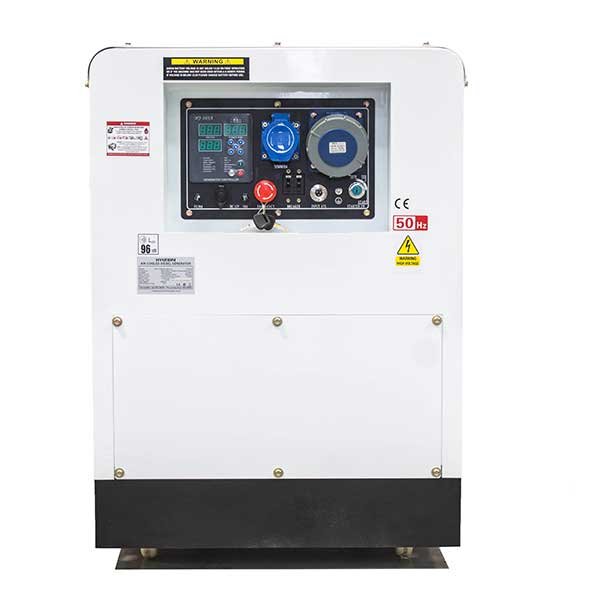

10kW/12.5kVA 230v Mains Standby Silenced Diesel Generator

Features:

• Single-phase backup diesel generator: Produces up to 12.5kVA / 10kW of power
• Long-run 60L diesel tank: Saves you from having to keep topping up the generator
• Fitted with an AVR alternator: Produces a smooth, clean energy output
• ATS compatible: Able to automatically transfer power to the generator in the event of a power cut
• Low noise generator: Produces 65 to 70db @ 7m
• Peace of mind: 1 year / 1,000 hours warranty* (terms apply)

Technical Specification:

• Model - DHY12500SE
• Rated/Prime kVA* - 12.5
• Rated/Prime kW - 10
• Max/Standby kVA* - 13.75
• Max/Standby kW - 11
• Phase - Single
• Voltage - 230
• Connection Method(s) - Sockets - 1 x 32A, 1 x 63A
• Rated Speed (RPM) - 3000
• Frequency (Hz) - 50
• Max/Continuous Current (Amps) - 47.83/43.48
• Power Factor (Cosφ) - 1
• Fuel/Power Source - Diesel
• Fuel Tank (Litres) - 50
• Runtime (Hours) @ 100% Load - 12
• Noise Level @ 1m 75%81.5 load (dB) - 81.5
• Noise Level @ 7m 75% load (dB) - 70

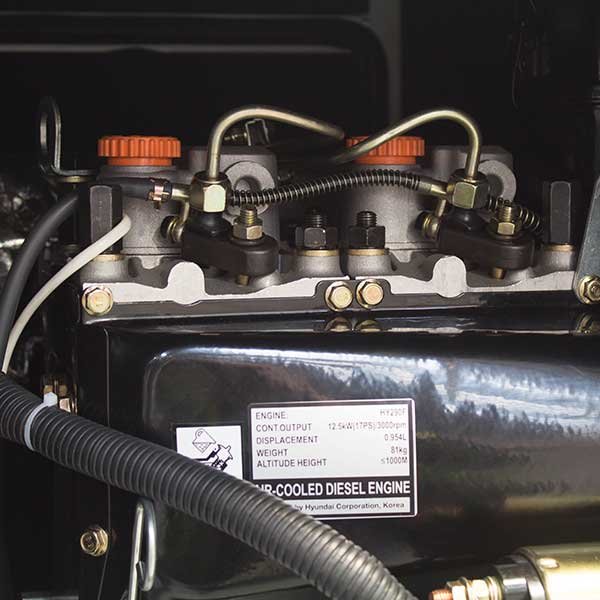

• Diesel Engine Model - HY290F
• Power Output (hp) - 20
• Engine Displacement (CC) - 954
• No. of Cylinders - 2
• Recommended Oil Type - 15w40 / 10w40
• Oil Capacity (Litres) - 3
• Oil Filter Part No. - 3049050901800
• Aspiration - Natural
• Fuel Regulation/Governor System - Mechanical
• Fuel Filter Part No. - 3049051001000
• Cooling Forced - Air-Cooled
• Breakers - Yes
• Alternator Type - Brushed
• Voltage Regulation - AVR
• Air Filter Part No. - 3049050700303
• Net Weight (kg) - 270
• Gross Weight (kg) - 290
• Wheel Kit? - Yes
• Dimensions L x W x H (mm) - 1175 x 695 x 1050
• Battery (Ah) - 45
• ATS / MTS Compatible - Yes

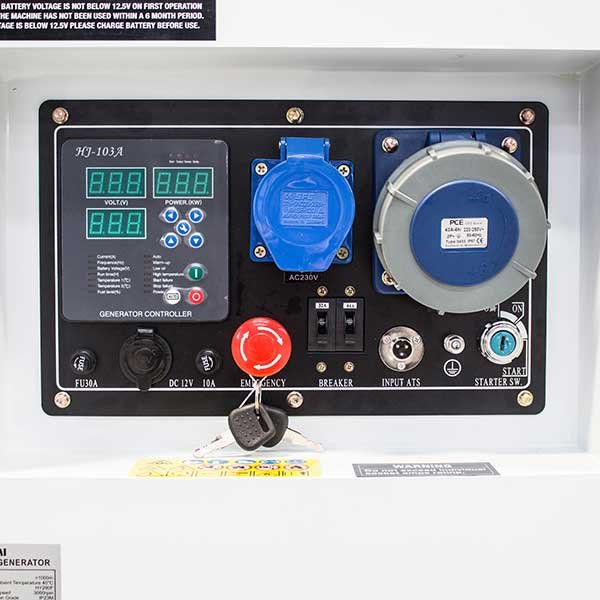

• Control Panel - HJ-103A
• Model EAN - 600231973526
• Warranty - 1 Year / 1000 Hours* (Terms apply)
• Assembly Required? - Yes - some assembly may be required
